Cloud Native

Overview

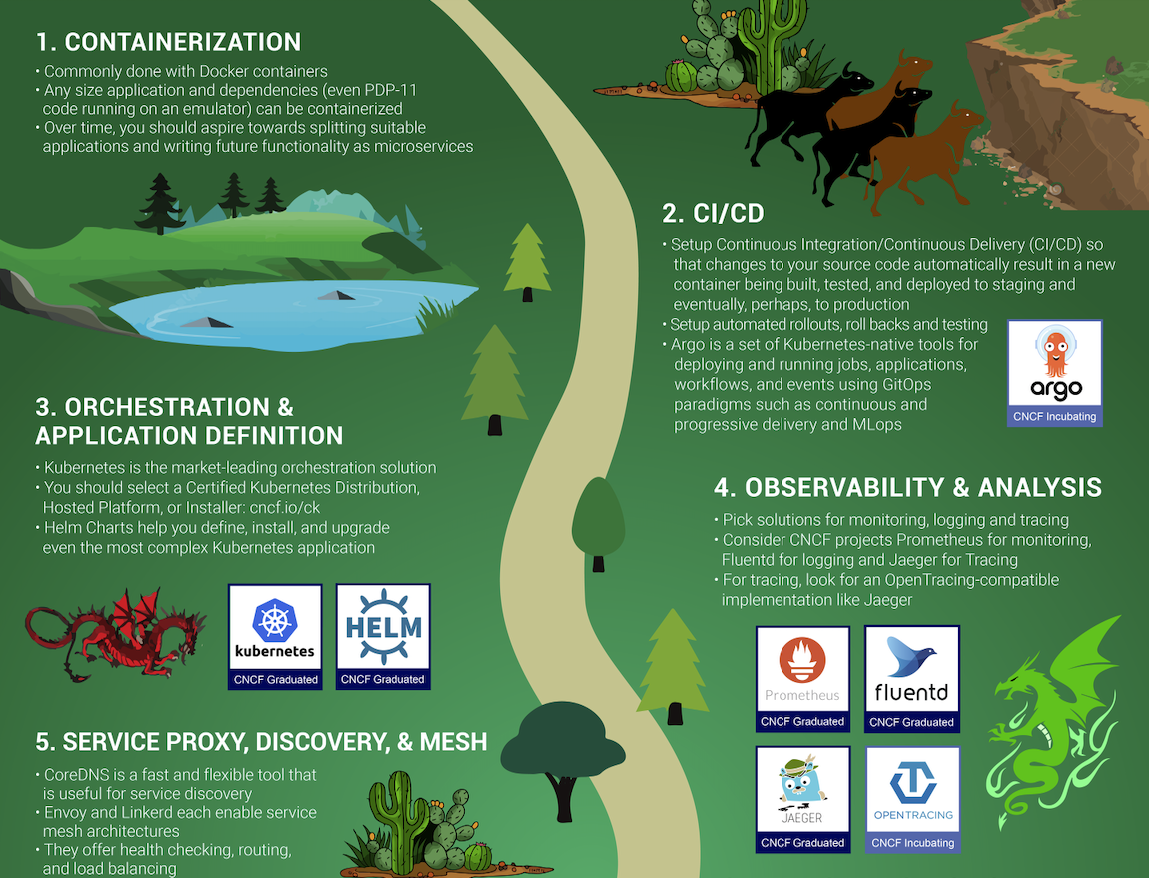

CNCF Trail Map

Kubernetes
Basic Concepts

Overview

  • In your architecture...
    • Containers are atomic pieces of application architecture
    • Containers can be linked (e.g. web server, DB)
    • Containers access shared resources (e.g. disk volumes)

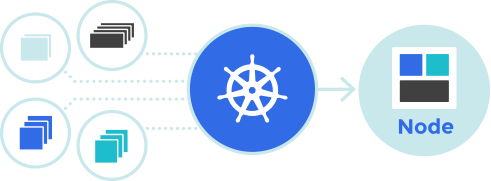

  • Kubernetes
    • Automation of deployments, scaling, management of containerized applications across number of nodes
    • Based on Borg, a parent project from Goolge

Key Design Principles

  • Kubernetes provides abstractions that separate application deployment from the underlying infrastructure details
  • Application workloads and infrastructure decoupling
    • Compute: Define what to run without specifying where it runs
    • Storage: Applications request storage independent of storage backend
    • Networking: Stable access to applications regardless of IPs or location
  • Benefits
    • Portability across on-prem and cloud environments
    • Scalability and resilience through dynamic scheduling
    • Consistency and standardization of deployment model
    • Reduced vendor lock-in thanks to open standards

Desired State and Reconciliation

  • Kubernetes operates on a desired state model
    • Users define the state they want through object specifications (YAML)
    • Example: “there should be 3 replicas of this application”
  • Actual State vs. Desired State
    • Kubernetes constantly monitors the cluster
    • If the actual state drifts from the desired state, it takes action to fix it

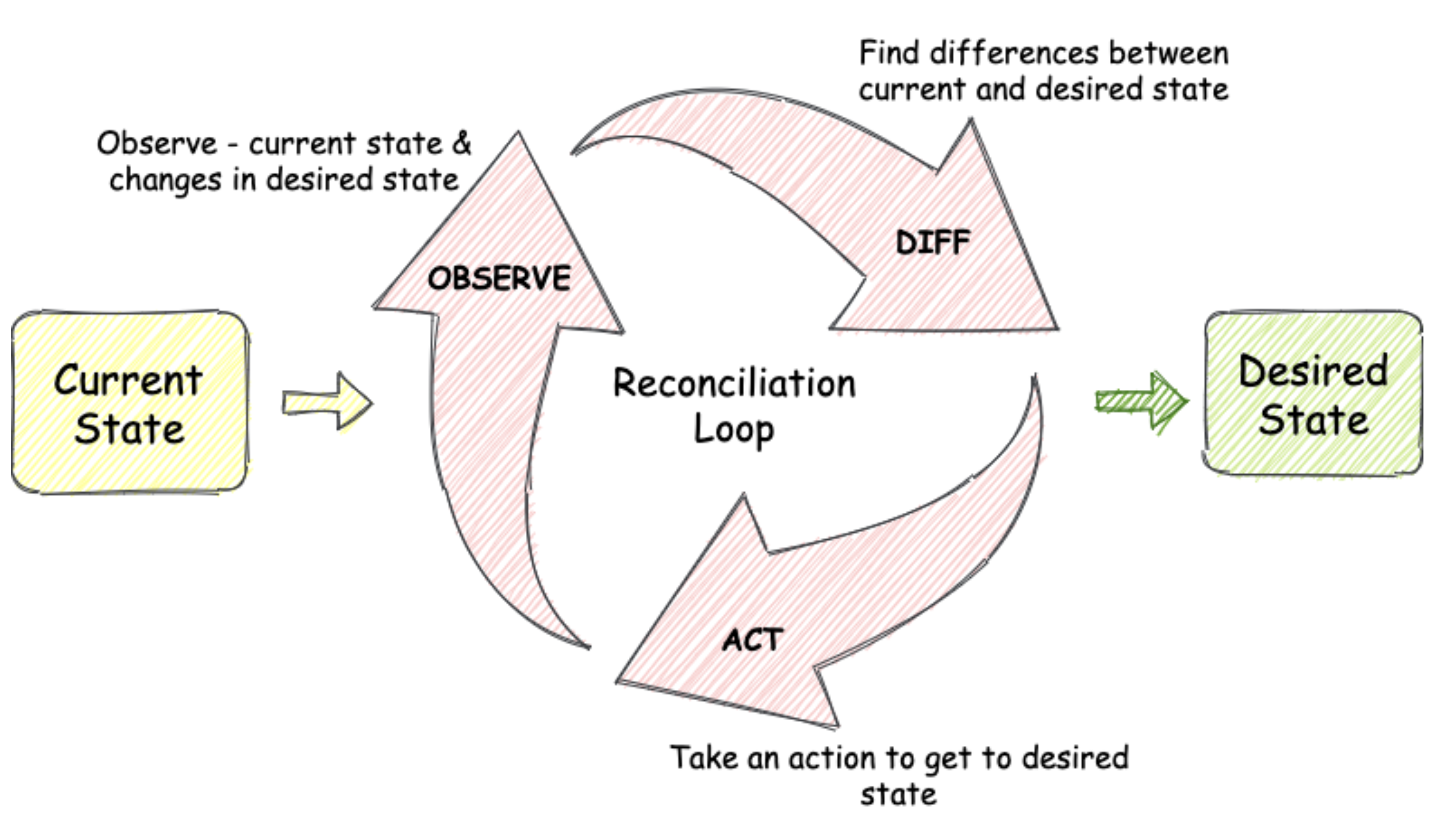

  • Reconciliation Loop
    • Controllers continuously compare desired vs. actual state
    • Automatically performs actions such as restarting, rescheduling, or scaling Pods

Features

  • Automatic binpacking
    • Automatically places containers onto nodes based on their resource requirements and other constraints.
  • Horizontal scaling
    • Scales your application up and down with a simple command, with a UI, or automatically based on CPU usage.
  • Automated rollouts and rollbacks
    • Progressive rollout out of changes to application/configuration, monitoring application health and rollback when something goes wrong.
  • Storage orchestration
    • Automatically mounts the storage system (local or in the cloud)
  • Self-healing
    • Restarts containers that fail, replaces and reschedules containers when nodes die, kills containers that don't respond to user-defined health checks.
  • Service discovery and load balancing
    • Gives containers their own IP addresses and a single DNS name for a set of containers, and can load-balance across them.
Core Concepts and Architecture

Core Building Blocks

  • Cluster
    • A set of worker nodes and a control plane
    • Runs and manages containerized applications
  • Node
    • A worker machine in Kubernetes (VM or physical)
    • Runs Pods scheduled by the control plane
  • Control Plane
    • Manages the overall state of the cluster
    • Schedules workloads and responds to cluster events
  • Pod
    • The smallest deployable unit in Kubernetes
    • One or more tightly-coupled containers
    • Containers share networking and storage within a Pod

Architecture

Control Plane Components (Part 1)

  • Global decisions about the cluster
    • Schedulling
    • Detecting and responding to cluster events, starting up new pods
  • kube-apiserver
    • exposes the Kubernetes API
    • The API server is the front end for the Kubernetes control plane.
  • etcd
    • highly-available key value store used to store all cluster data
  • kube-scheduler
    • watches for newly created Pods with no assigned node
    • selects a node for Pods to run on.
    • Decision factors: resource requirements, hardware/software/policy constraints, affinity and anti-affinity specifications

Control Plane Components (Part 2)

  • kube-controller-manager
    • runs controller to ensure the desired state of cluster objects
    • Node controller
      • noticing and responding when nodes go down
    • Job controller
      • creates Pods to run one-off tasks to completion.
    • Endpoints controller
      • Populates the Endpoints object (that is, joins Services, Pods).
  • cloud-controller-manager
    • Integration with cloud services (when the cluster is running in a cloud)
    • Node controller
      • checks if a node has been deleted in the cloud after it stops responding
    • Route controller
      • For setting up routes in the underlying cloud infrastructure
    • Service controller
      • For creating, updating and deleting cloud provider load balancers

Node

  • Kubernetes runtime environment
    • Run on every node
    • Maintaining running pods
  • kubelet
    • An agent that runs on each node in the cluster
    • It makes sure that containers are running in a Pod.
  • kube-proxy
    • maintains network rules on nodes
    • network rules allow network communication to Pods from inside or outside of the cluster
    • uses the operating system packet filtering layer or forwards the traffic itself.
  • Container runtime
    • Responsible for running containers
    • Kubernetes supports several container runtimes (containerd, CRI-O)
    • Any implementation of the Kubernetes CRI (Container Runtime Interface)

Container Stack

Workloads

Namespaces

  • Logical grouping of cluster resources
    • Allow you to organize and separate objects within a Kubernetes cluster
    • Useful when multiple teams, environments, or projects share the same cluster
  • Rationale
    • Provide isolation and boundaries between workloads
    • Prevent name collisions
      • Objects can have the same name if in different namespaces
    • Enable resource limits and access control per namespace
  • Usage
    • Common namespaces: default, kube-system, kube-public, kube-node-lease
    • Create separate namespaces for e.g. dev, test, prod
    • Commands run in a namespace unless another is specified

Pod

  • Pod
    • A group of one or more tightly-coupled containers.
    • Containers share storage and network resources.
    • A Pod runs a single instance of a given application
    • Pod's containers are always co-located and co-scheduled
    • Pod's containers run in a shared context, i.e. in a set of Linux namespaces
  • Pods are created using workload resources
    • You do not create them directly
  • Pods in a Kubernetes cluster are used in two main ways
    • Run a single container, the most common Kubernetes use case
    • Run multiple containers that need to work together

Workloads

  • An application running on Kubernetes
  • Workloads run in a set of Pods
  • Pre-defined workload resources to manage lifecylce of Pods
    • Deployment and ReplicaSet
      • managing a stateless application workload
      • any Pod in the Deployment is interchangeable and can be replaced if needed
    • StatefulSet
      • one or more related Pods that track state
      • For example, if a workload records data persistently, run a StatefulSet that matches each Pod with a persistent volume.
    • DaemonSet
      • Ensures that all (or some) Nodes run a copy of a Pod
      • Such as a cluster storage daemon, logs collection, node monitoring running on every node
    • Job and CronJob
      • Define tasks that run to completion and then stop.
      • Jobs represent one-off tasks, whereas CronJobs recur according to a schedule.

Deployment Spec Example

  • Deployment spec
    •           apiVersion: apps/v1
          kind: Deployment
          metadata:
            name: nginx-deployment
          spec:
            selector:
              matchLabels:
                app: nginx
            replicas: 3 # tells deployment to run 3 pods matching the template
            template:
              metadata:
                labels:
                  app: nginx
              spec:
                containers:
                - name: nginx
                  image: nginx:1.14.2
                  ports:
                  - containerPort: 80
    • A desired state of an application running in the cluster
    • Kubernetes reads the Deployment spec and starts three app instances
    • If an instance fails, Kubernetes starts a replacement app instance
Services

What is a Service?

  • A Kubernetes Service is an abstraction that defines
    • A logical set of Pods
    • A policy to access them.
  • Pods are ephemeral – their IPs change when recreated
  • A Service provides a stable virtual endpoint for a set of Pods
  • Services enable reliable communication between components:
    • Internal pods communication
    • External access to cluster workloads
  • Each Service gets
    • A DNS name and
    • virtual IP (ClusterIP) inside the cluster.
  • Kubernetes component kube-proxy manage routing to backend Pods.

Service Types

  • ClusterIP
    • Exposes the Service on an internal IP in the cluster only.
    • Used for internal communication between Pods.
  • NodePort
    • Exposes the Service on each Node’s IP at a static port (e.g. 30080).
    • Accessible externally via NodeIP:NodePort.
  • LoadBalancer
    • Provisions an external load balancer (e.g. in cloud environments).
    • Routes external traffic to the Service.
  • ExternalName
    • Maps the Service to an external DNS name.
    • No proxying — pure DNS CNAME redirection.

How Services Work

  • Selector
    • A Service usually defines a selector — a label query used to find matching Pods.
    • Example: selector: app=nginx matches all Pods with label app=nginx.
    • Kubernetes monitors Pods that match this selector and updates Service backends
  • Endpoints / EndpointSlice
    • For every Service with a selector, Kubernetes creates an Endpoints (or EndpointSlice) object listing all healthy Pod IPs and ports.
    • This list changes dynamically as Pods are added, removed, or become unhealthy.
  • kube-proxy
    • Runs on every Node and watches Service and Endpoint objects.
    • Programs iptables or IPVS rules to forward traffic from the Service’s virtual IP (ClusterIP) to one of the backend Pod IPs.
    • Load balancing is done using round-robin or IPVS algorithms.
  • DNS Integration
    • CoreDNS automatically creates a DNS record for each Service:
      • <service>.<namespace>.svc.cluster.local
    • Pods can reach the Service via DNS without knowing Pod IPs
      • curl http://my-service.default.svc.cluster.local

ClusterIP Service Example

  • Example configuration exposing an NGINX Deployment internally:
    •           apiVersion: v1
          kind: Service
          metadata:
            name: nginx-svc
          spec:
            selector:
              app: nginx
            ports:
            - protocol: TCP
              port: 80
              targetPort: 8080
            type: ClusterIP
  • Pods with app=nginx receive traffic through ClusterIP.
  • DNS name: nginx-svc.default.svc.cluster.local
  • Used by other Pods to connect via http://nginx-svc:80.

Packet Forwarding and Load Balancing

  • iptables mode
    • kube-proxy creates NAT rules in the nat table to redirect Service traffic.
    • Example traffic comming to NodeIP:NodePort (e.g. 192.168.1.11:30080)
      • # 1. Match NodePort traffic coming from outside
-A KUBE-NODEPORTS -p tcp --dport 30080 -m addrtype ! --src-type LOCAL \
  -j KUBE-MARK-MASQ
    # Mark all external traffic for SNAT (so replies go back via this node)

# 2. NodePort forwards traffic to the Service chain
-A KUBE-NODEPORTS -p tcp --dport 30080 \
  -m comment --comment "default/my-service: NodePort" \
  -j KUBE-SVC-XYZ123

# 3. Service chain chooses one backend Pod
-A KUBE-SVC-XYZ123 -m statistic --mode random --probability 0.5 \
  -j KUBE-SEP-A1B2C3
-A KUBE-SVC-XYZ123 -j KUBE-SEP-D4E5F6

# 4. Pod DNAT rule to redirect to Pod IP:port
-A KUBE-SEP-A1B2C3 -p tcp -m tcp -j DNAT --to-destination 10.42.0.12:8080
-A KUBE-SEP-D4E5F6 -p tcp -m tcp -j DNAT --to-destination 10.42.1.7:8080
    • The node’s routing table determines how to reach the Pod’s IP:
      • 10.42.0.0/24 via 192.168.1.12 dev flannel.1
      • packets to Pods in 10.42.0.0/24 (running on Node 2) are sent through the VXLAN interface flannel.1 to Node 2’s IP 192.168.1.12
Beyond the Basics

Advanced Topics

  • Custom APIs and Controllers
    • CRDs, Operators, reconciliation loops
    • Admission webhooks (mutating/validating)
  • Security
    • RBAC, Namespaces, Pod Security (seccomp, capabilities, rootless)
    • Image signing and supply chain (SBOM, cosign), Secret management (Vault/CSI)
    • Policy engines: OPA Gatekeeper, Kyverno
  • Networking
    • CNI, eBPF (Cilium), NetworkPolicies, Ingress
    • Gateway API, Service Mesh (mTLS, traffic shaping)
  • Storage
    • CSI drivers, snapshots, expansion, topology-aware PVs
    • Backup/DR (e.g., Velero), StatefulSet patterns
  • Scaling and Scheduling
    • HPA/VPA/KEDA (event-driven), Cluster Autoscaler
    • Affinity/anti-affinity, taints/tolerations, topology spread
  • Ops and Delivery
    • GitOps (Argo CD/Flux), progressive delivery (canary, blue/green)
    • Observability: metrics/logs/traces (Prometheus, OpenTelemetry)
  • Runtimes and Isolation
    • containerd/CRI-O, shims, sandboxed runtimes (gVisor, Kata)
    • Wasm/WASI experiments
  • Multi-Cluster and Platform
    • Cluster API, federation, service discovery across clusters
    • Multi-tenancy, quotas, cost allocation
