Software Architecture
Types, Separation of Concerns, Interface

Software Architecture Types

  • Centralized – Client/Server (C/S)
    • Central server, a bunch of clients
    • monolithic, two–, three–, multi–tier architectures
    • Single point of failure!
      • when a server fails the whole system fails
      • need for a scalable and highly reliable server-side solutions
    • Enterprise systems (mostly) use centralized solutions
      • But, enhanced with peer-to-peer principles
  • Decentralized – Peer-to-Peer (P2P)
    • Reliability
      • when a node fails, other nodes take up its function
    • Scalability
      • multiple nodes can share the load
      • such as messaging systems in enterprise systems

Separation of Concerns

  • Separation of Concerns
    • also called Separation of Layers
    • Concern – any piece of interest (part) in the application
      • concerns should overlap in functionality as little as possible
    • Basic application concerns: data manipulation, data integrity, application logic, user-interactions
    • Software architecture separates concerns into layers
      • presentation, application, data
  • Interface
    • ∼ agreement on "how layers should communicate"
    • most important artifact in Separation of Concerns
    • If an interface is in place, application development and innovation can happen independently at each layer

Interface

  • Definition
    • Agreement (contract) between two or more layers during communication
  • May be achieved by
    • Through standards (accepted or enforced),
    • Through a social agreement during design
    • A dominant position of a technology on the market
  • Interface includes subsets of domain architectures
    • Subsets that are subject to communication between layers
    • data – defines communication language (syntax, semantics),
    • functions – defines entry points (operations),
    • processes – defines valid states and transitions between them
    • technical details – protocols, ports, IP addresses, etc.

Interface Example: REST API

  • Data interface: JSON format
  • Function interface: HTTP methods
    • GET /customers/{id} - retrieve customer
    • POST /customers - create customer
    • PUT /customers/{id} - update customer
  • Process interface: state transitions
  • Technical interface: HTTPS, port 443, authentication
Client/Server Architectures

Monolithic Architecture

  • All layers on a single machine
    • usually non-portable apps; specific OS
    • first types of computer systems, typical for 90-ties
    • single-user only; standalone apps, minimal integration
    • technologies: third-gen programming languages, local storage systems
  • Drawbacks
    • hard to maintain (updates, distribution of new versions)
    • data security issues
    • performance and scalability issues

Two-tier Client/Server Architecture

  • Presentation and app layers separated with data
    • Thick client – desktop application, OS-dependent
    • Data on a separate server (DBMS)
    • Multi-user system, all sharing a database
    • Storage system of high performance, transactions support
    • SQL technology; native OS desktop application
  • Drawbacks
    • Thick client hard to maintain (reinstallation with every update)
    • No app logic sharing (only through copies)
    • Data-oriented integration (integrity in the app logic!)

Three-tier Client/Server Architecture

  • All layers on separated machines
    • Thin client – desktop application or interpreted code
    • Multi-user system, all sharing app logic and a database
    • App server of high performance, scalability
  • Drawbacks
    • Spaghetti integration
    • Limited, single app server scalability

Multi-tier Client/Server Architecture

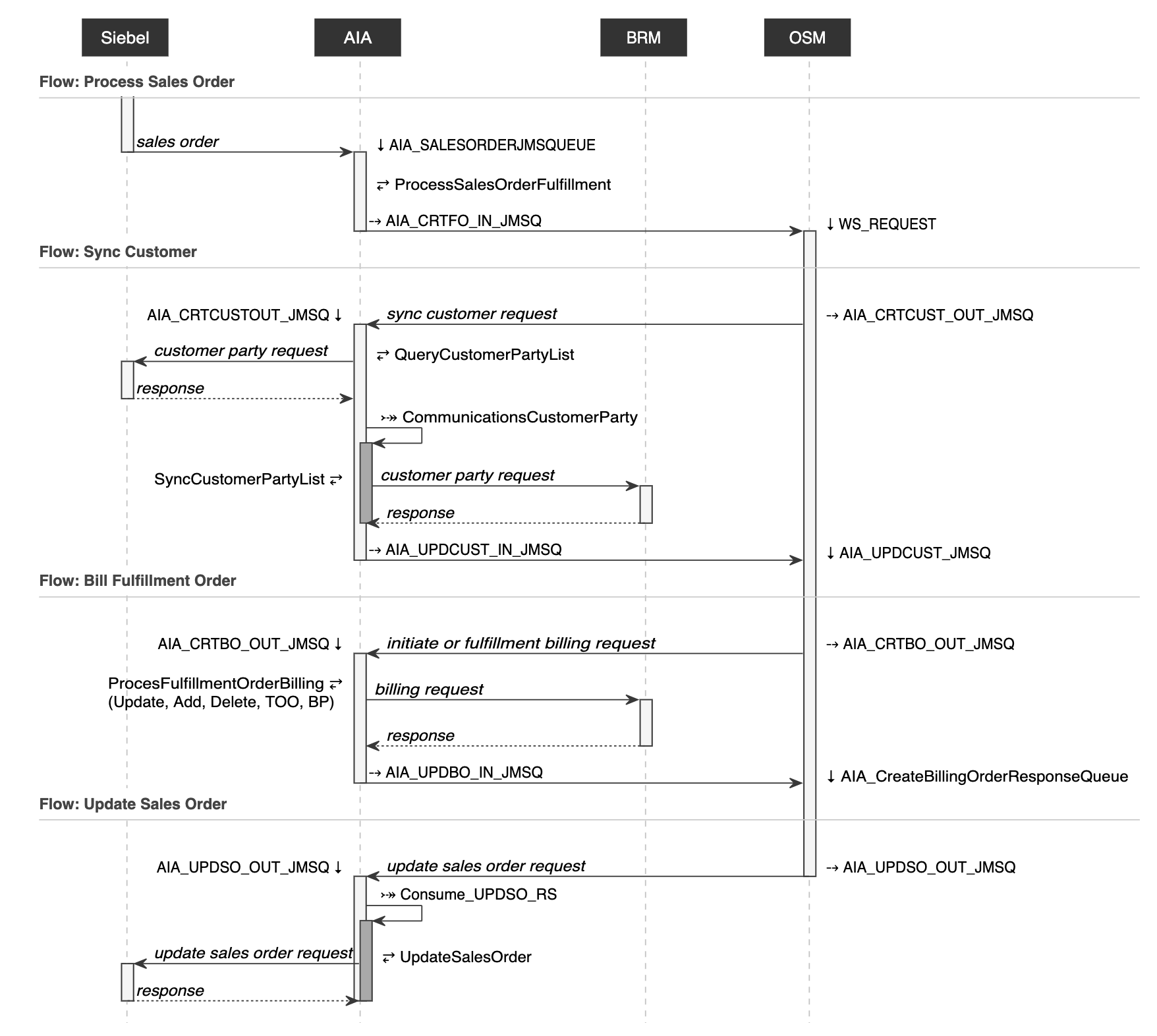

  • Additional middleware layer
    • provides value-added services for communications
    • individual servers or a compact solution (e.g., Enterprise Service Bus)
  • Drawbacks
    • Monolithic apps are difficult to scale as a whole
    • Deployment overhead
    • A single technological environment for all app functions in the monolith

Client/Server Architecture (microservices)

  • Microservice architecture
    • Middleware, app and DB monoliths are microservice architecture
    • Improved scalability and technology neutrality of app components
  • Service orchestration layer
    • Kubernetes (K8s)
    • Large K8s cluster for all, middleware, app, DB
    • Separate K8s cluster

Client/Server Architecture (microservices)

  • Not-a-microservice Architecture
    • Monoliths deployed to Kubernetes cluster
    • Improved Deployments (via container images)
    • Improved fail-over
    • Not cheaper (Kubernetes costs come into play)

Types of Middleware

  • Scalability
    • They help to achieve high performance through better scalability
    • Messaging Servers (message queues, publish/subscribe)
    • Load Balancers
    • Proxy servers, reverse proxy
  • Functional
    • They help to achieve more flexible integration
    • Process servers
    • Repositories, registries of services/components
    • Mediators – data interoperability, process interoperability, technical interoperability (SOAP server)
    • Monitors for analytics of apps usages
  • Security
    • Firewalls, Gateways, ...
